$39-89 /Piece/Pieces
| Tipo di pagamento: | L/C |
| Quantità di ordine minimo: | 100 Piece/Pieces |
| Trasporti: | Ocean |
| Porta: | Tianjin |
marchio: Recinzione dd
Luogo D'origine: Cina
Materiale Del Telaio: metallo
Trattamento Superficiale Del Telaio: Verniciato a polvere
Caratteristiche: Facilmente assemblato
Usa L'occasione: Recinzione del giardino, Recinzione autostradale
Specie: Recinzioni, tralicci e cancelli, Cancelli di recinzione, recinzione di sicurezza
Contenuto Del Servizio: libretto di istruzioni, video di installazione
Modello n.: 1111830
Raw Material: Steel Carbon Wire
Wire Dia: 3-4mm
Mesh Size: 76.2X12.7mm or 75X10mm
Width: 2130-2740mm
Height: 1830-2740mm
Post: 76X64mm Or75X75mm
Fittings: Flat Bar &Bolts and Nuts
Rain Hat: ABS+UV
Wall Spike: Available
Razor Wire: Avalible
Finish: Hot Dipped Galvanized or Powder Coated
Standards Reference: BS1722-14 ISO1461 as So on
Transport Package: Iron Pallet
Specification: 2440*2130mm
Trademark: DD FENCE
Origin: China
Codice SA: 73089000
Capacità di produzione: 10000sets
Sertifikasi: ISO9001, RoHS, ISO14001, OHSAS18001, SGS, BV, TUV
Forma Del Foro: Piazza
Finitura Del Telaio: Verniciato a polvere
Trattamento della superficie: Coated
Weave Technique: Welded
Materiale: Acciaio
| Unità vendibili | : | Piece/Pieces |
| Tipo pacchetto | : | Pallet di ferro |
The file is encrypted. Please fill in the following information to continue accessing it
| 2D -Panel | ||||||
| Code | H(mm) | W(mm) | Mesh(mm) | Horizontal wire | Vertical wire | No. of V |
| 1111830 | 1830(6ft) | 2740(9ft) | 76.2X12.7(3''X1/2'') | 4.00 | 4.00 | 0 |
| 1112130 | 2130(7ft) | 2740(9ft) | 76.2X12.7(3''X1/2'') | 4.00 | 4.00 | 0 |
| 1112440 | 2440(8ft) | 2130(7ft) | 76.2X12.7(3''X1/2'') | 4.00 | 4.00 | 0 |
| 1112740 | 2740(9ft) | 2130(7ft) | 76.2X12.7(3''X1/2'') | 4.00 | 4.00 | 0 |

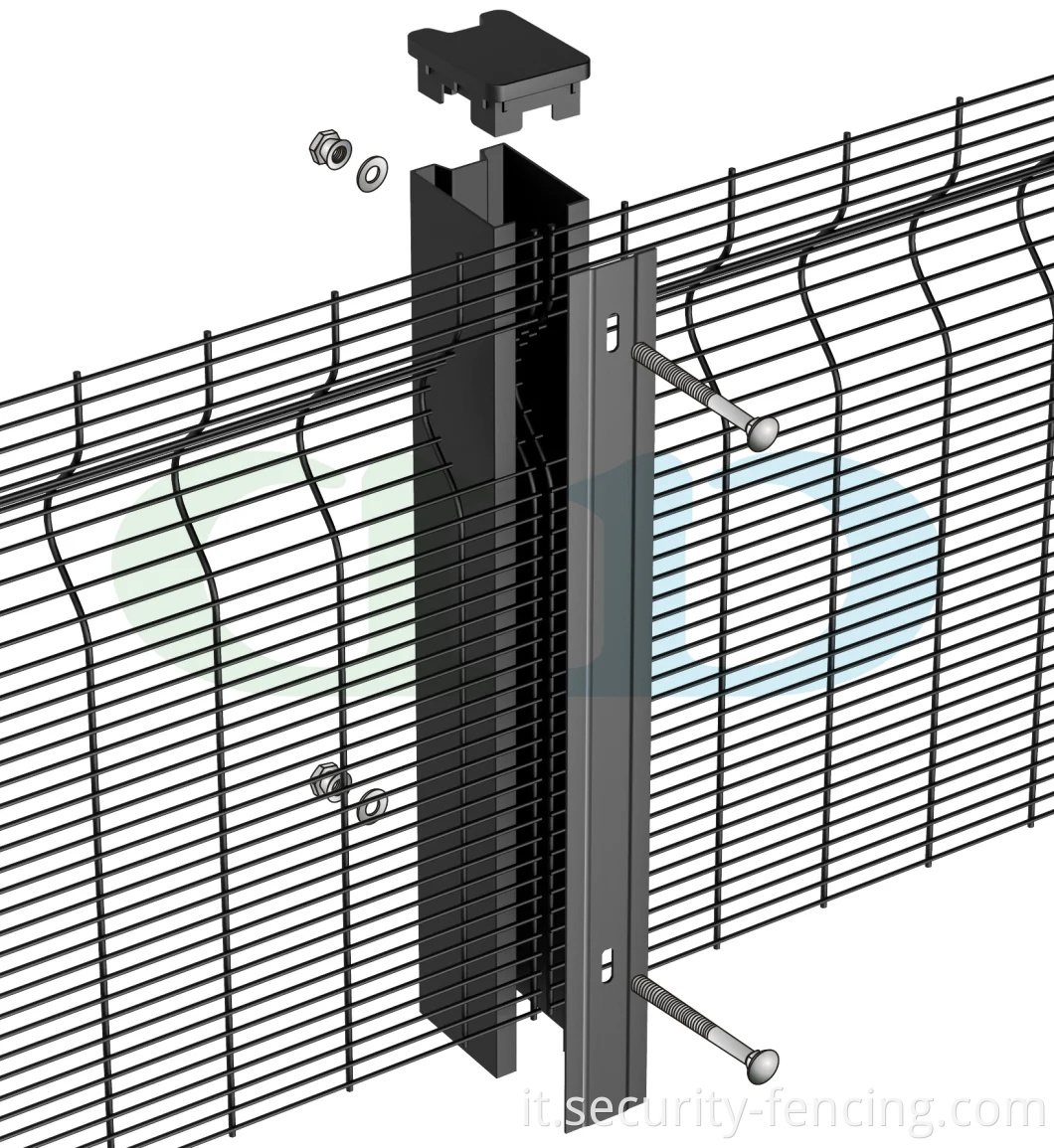

| 3D -Panel | ||||||
| Code | H(mm) | W(mm) | Mesh(mm) | Horizontal wire | Vertical wire | No. of V |
| 1111830 | 1830(6ft) | 2740(9ft) | 76.2X12.7(3''X1/2'') | 3.00 | 4.00 | 3 |
| 1112130 | 2130(7ft) | 2740(9ft) | 76.2X12.7(3''X1/2'') | 3.00 | 4.00 | 4 |
| 1112440 | 2440(8ft) | 2130(7ft) | 76.2X12.7(3''X1/2'') | 3.00 | 4.00 | 4 |
| 1112740 | 2740(9ft) | 2130(7ft) | 76.2X12.7(3''X1/2'') | 3.00 | 4.00 | 5 |

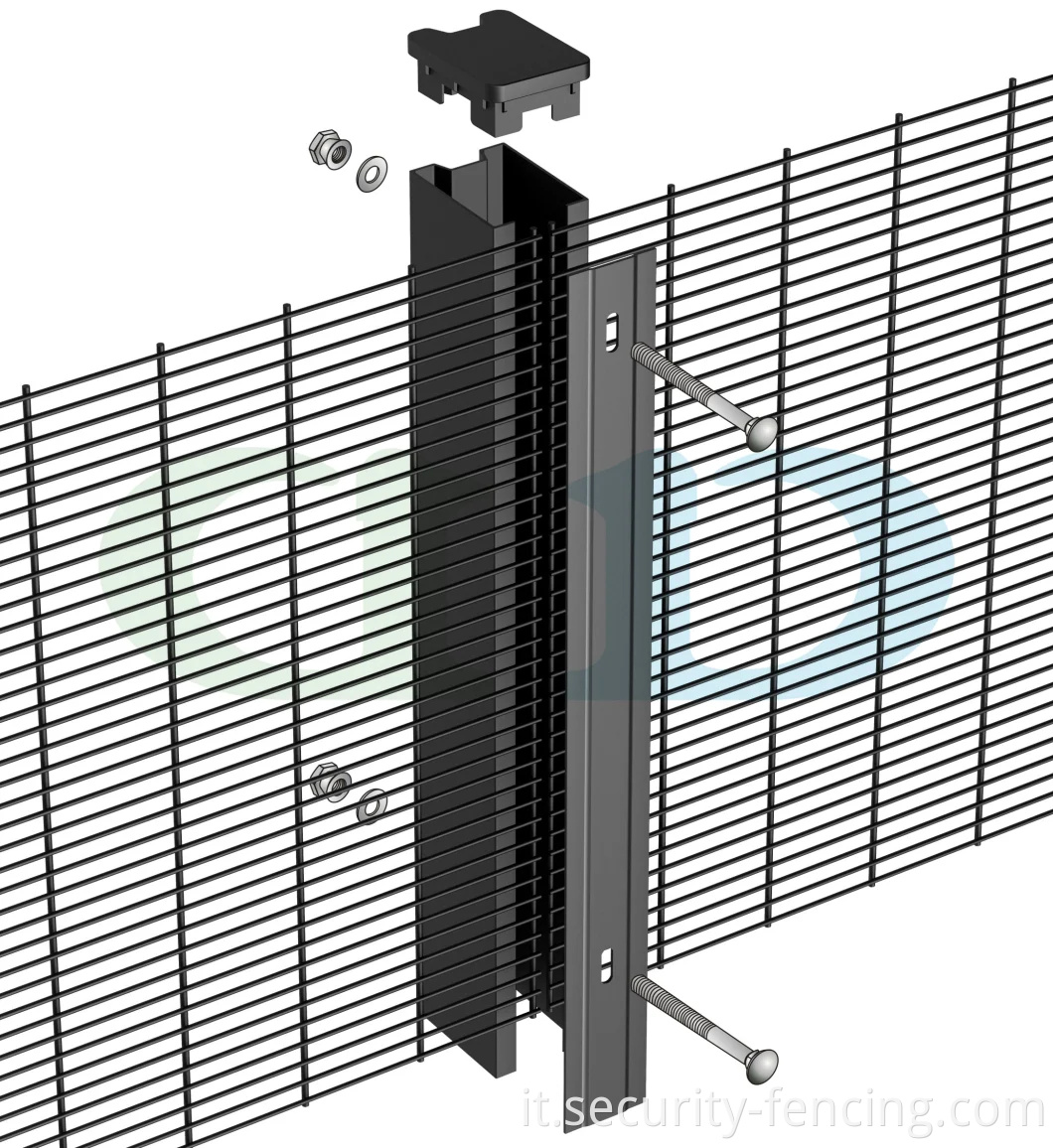

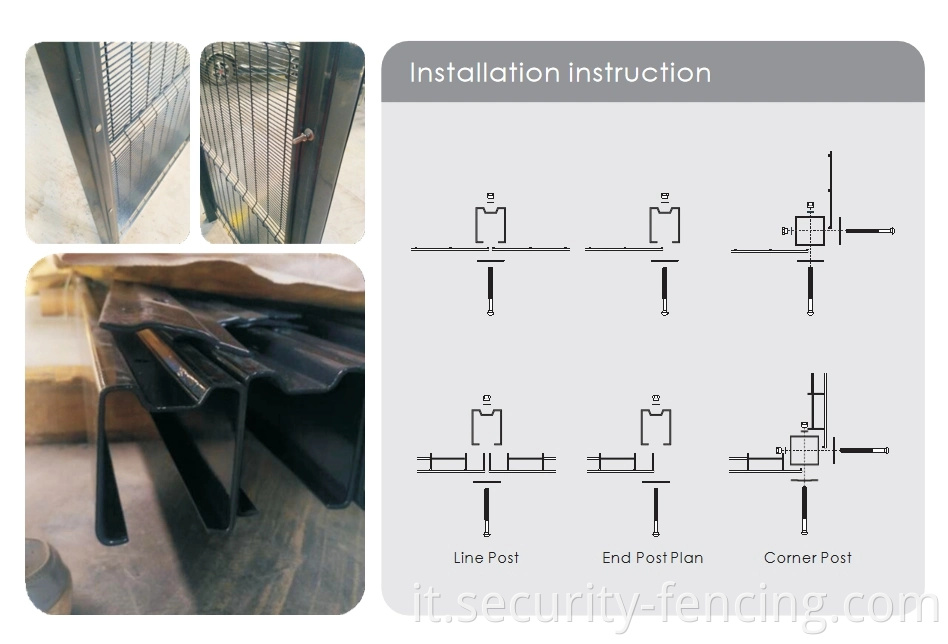

| Line / End Post | ||||||
| Code | H(mm) | Depth(mm) | Section(mm) | Wall thick(mm) | No.of Holes | Hole Size |
| 1212440 | 2440(8ft) | 610(2ft) | 76x64(3''x2-1/2'') | 2.0(14ga) | 5 | φ9.0(0.32'') |
| 1212740 | 2740(9ft) | 610(2ft) | 76x64(3''x2-1/2'') | 2.0(14ga) | 6 | φ9.0(0.32'') |
| 1213048 | 3048(10ft) | 610(2ft) | 76x64(3''x2-1/2'') | 2.5(12-1/2ga) | 7 | φ9.0(0.32'') |
| 1213658 | 3658(12ft) | 914(3ft) | 76x64(3''x2-1/2'') | 2.5(12-1/2ga) | 8 | φ9.0(0.32'') |
| Corner Post | ||||||
| Code | H(mm) | Depth(mm) | Section(mm) | Wall thick(mm) | No.of Holes | Hole Size |
| 1222440 | 2440(8ft) | 610(2ft) | 75x75(3''x3'') | 2.0(14ga) | 5 | φ9.0(0.32'') |
| 1222740 | 2740(9ft) | 610(2ft) | 75x75(3''x3'') | 2.0(14ga) | 6 | φ9.0(0.32'') |
| 1223048 | 3048(10ft) | 610(2ft) | 75x75(3''x3'') | 2.5(12-1/2ga) | 7 | φ9.0(0.32'') |
| 1223658 | 3658(12ft) | 914(3ft) | 76x75(3''x3'') | 2.5(12-1/2ga) | 8 | φ9.0(0.32'') |

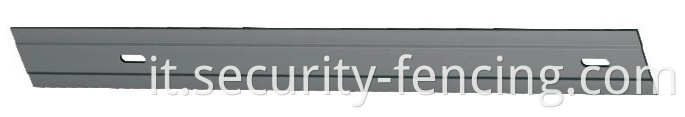

| Flat Bar-H1 | |||||
| Code | H-1(mm) | Sizemm) | Wall thick(mm) | No.of Holes | Hole Size |
| 1311830 | 1830(6ft) | 64(1-1/2'') | 2.0(14ga) | 5 | φ10.0(0.4'') |
| 1312130 | 2130(7ft) | 64(1-1/2'') | 2.0(14ga) | 6 | φ10.0(0.4'') |
| 1312440 | 2440(8ft) | 64(1-1/2'') | 2.5(12-1/2ga) | 7 | φ10.0(0.4'') |
| 1312740 | 1740(9ft) | 64(1-1/2'') | 2.5(12-1/2ga) | 8 | φ10.0(0.4'') |
| Flat Bar-H2 | |||||
| Code | H-2(mm) | Sizemm) | Wall thick(mm) | No.of Holes | Hole Size |
| 1321830 | 2130(7ft) | 64(1-1/2'') | 2.0(14ga) | 6 | φ10.0(0.4'') |
| 1322130 | 2440(8ft) | 64(1-1/2'') | 2.0(14ga) | 7 | φ10.0(0.4'') |
| 1322440 | 2740(9ft) | 64(1-1/2'') | 2.5(12-1/2ga) | 8 | φ10.0(0.4'') |
| 1322740 | 3048(10ft) | 64(1-1/2'') | 2.5(12-1/2ga) | 9 | φ10.0(0.4'') |

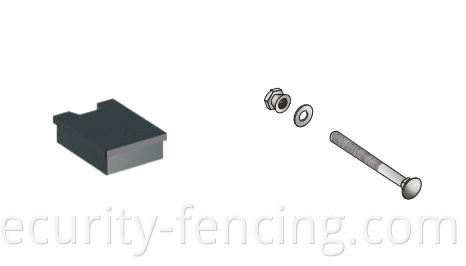

| Bolts & Nuts | ||||
| Code | L(mm) | Grade | Dia.(mm) | Materials |
| 1410080 | 80(3.14'') | A2-70 | ø8.00(0.31'') | ss304 |
| 1420100 | 100(4.00'') | A2-70 | ø8.00(0.31'') | ss304 |
| 1430008 | 08(0.315'') | A2-70 | ø8.00(0.31'') | ss304 |
| 1440025 | 25(1.00'') | A2-70 | ø8.00(0.31'') | ss304 |
| Rain Hat | ||
| Code | Size(mm) | Materials |
| 1517664 | 76x64(3''x2-1/2'') | ABS+UV |
| 1520075 | 75x75(4'') | ABS+UV |
| 1530080 | 80x80(3.15''x3.15'') | ABS+UV |
| 1540100 | 100x100(4''x4'') | ABS+UV |

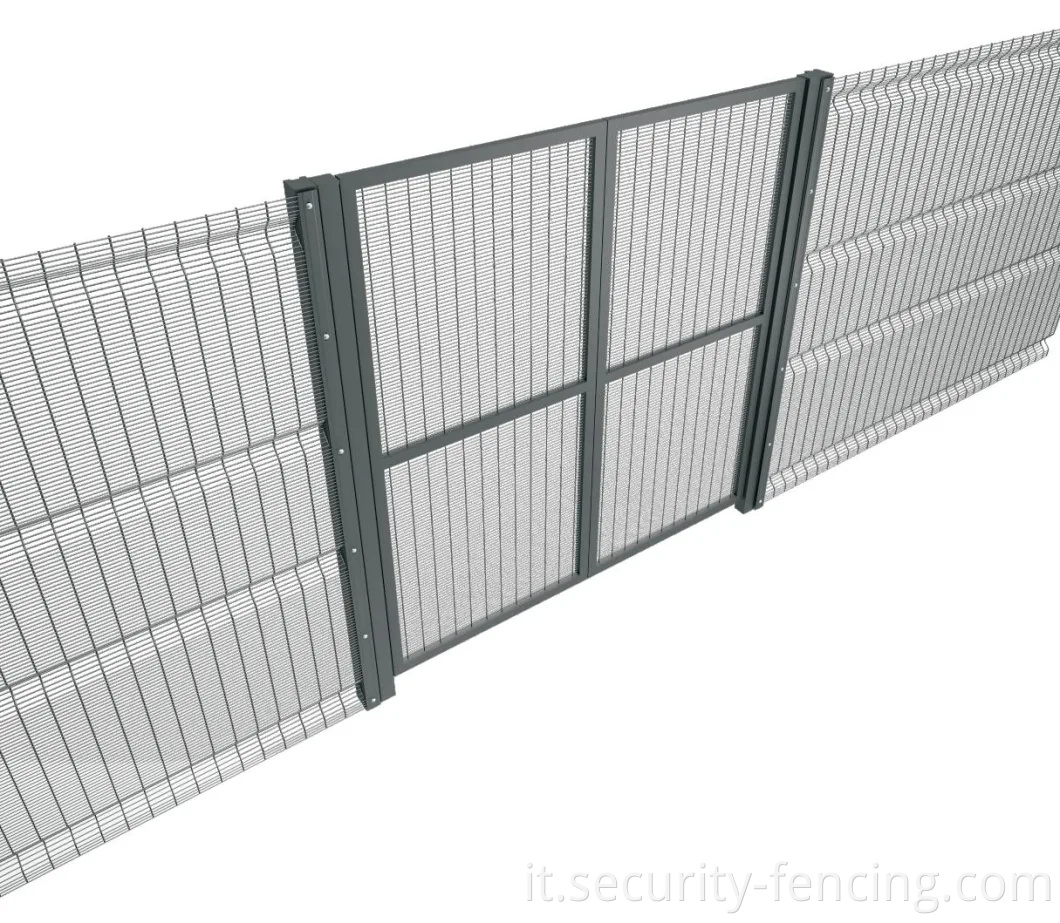

| Gate-Manual | |||||||
| Code | H(mm) | Opening | Mesh In Filled(mm) | Frame(mm) | Gate Post | Lock | Type |
| 1611830 | 1830(6ft) | 914-2130(3ft-7ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
40x60 (1.6''x2.4'') |
80x80 (3.15''x3.15'') |
Sliding bolt & Ground plug |
Single Swing |
| 1612130 | 2130(7ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
40x60 (1.6''x2.4'') |
80x80 (3.15''x3.15'') |
Sliding bolt & Ground plug |
||
| 1612440 | 2440(8ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
60x80 (2.4''x3.15'') |
100x100 (4''x4'') |
Sliding bolt & Ground plug |
||
| 1612740 | 2740(9ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
60x80 (2.4''x3.15'') |
100x100 (4''x4'') |
Sliding bolt & Ground plug |
||
| 1621830 | 1830(6ft) | 2130-6100(7ft-20ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
40x60 (1.6''x2.4'') |
80x80 (3.15''x3.15'') |
Sliding bolt & Ground plug |
Double Swing |
| 1622130 | 2130(7ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
40x60 (1.6''x2.4'') |
80x80 (3.15''x3.15'') |
Sliding bolt & Ground plug |
||
| 1622440 | 2440(8ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
60x80 (2.4''x3.15'') |
100x100 (4''x4'') |
Sliding bolt & Ground plug |
||
| 1622740 | 2740(9ft) |
76.2x12.7x4x4 (3''x1/2''x8Gax8Ga) |
60x80 (2.4''x3.15'') |
100x100 (4''x4'') |
Sliding bolt & Ground plug |
||
