$49-89 /Set/Sets
| Tipo di pagamento: | L/C |
| Quantità di ordine minimo: | 100 Set/Sets |
| Trasporti: | Ocean |
| Porta: | Tianjin |
marchio: DD-Fence
Luogo D'origine: Cina
Materiale Del Telaio: metallo
Trattamento Superficiale Del Telaio: Verniciato a polvere
Caratteristiche: Facilmente assemblato
Usa L'occasione: Recinzione del giardino
Specie: Recinzioni, tralicci e cancelli
Contenuto Del Servizio: libretto di istruzioni, video di installazione
Modello n.: Normesh privacy
Height: 1930mm
Width: 2000mm
WIRE: 4mm
Mesh: 50X200
Slat: PVC
Standard: RoHS
Sertifikasi: Astm, Iso9001, Rohs, Ce
Hole Shape: Rectangle
Finitura Del Telaio: Verniciato a polvere
Trattamento della superficie: Coated
Tecnica Weave: Tessitura piana
Materiale: Metallo
| Unità vendibili | : | Set/Sets |
| Tipo pacchetto | : | Pallet in acciaio |
The file is encrypted. Please fill in the following information to continue accessing it
| 3D-PANEL-1 | ||||||
| Code | H (mm) | W (mm) | Mesh (mm) | Horizontal wire | Vertical Wire | No.of V |
| 7111230 | 1230(4.00ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 2 |
| 7111430 | 1430(4.70ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 2 |
| 7111730 | 1730(5.70ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 3 |
| 7111930 | 1930(6.34ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 3 |

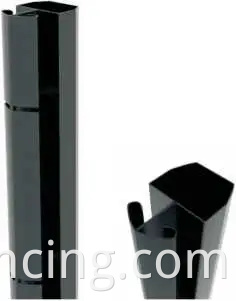

| POST-58x80 | ||||
| Code | H (mm) | Depth(mm) | Section (mm) | Wall thick(mm) |
| 7211600 | 1600(5.25ft) | 370(1.21ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7211900 | 1900(6.25ft) | 470( 1.54ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212200 | 2200(7.22ft) | 470( 1.54ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212400 | 2400(7.87ft) | 670(2.20ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212600 | 2600(8.53ft) | 670(2.20ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| POST-70X100 | ||||
| Code | H (mm) | Depth(mm) | Section (mm) | Wall thick(mm) |
| 7221900 | 1900(6.25ft) | 470(1.54ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222200 | 2200(7.22ft) | 470(1.54ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222400 | 2400(7.87ft) | 670(2.20ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222600 | 2600(8.53ft) | 670(2.20ft) | 70X100(2.76"x3.94") | 1.0(19GA) |

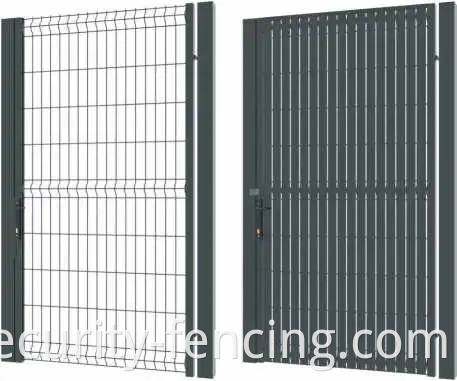

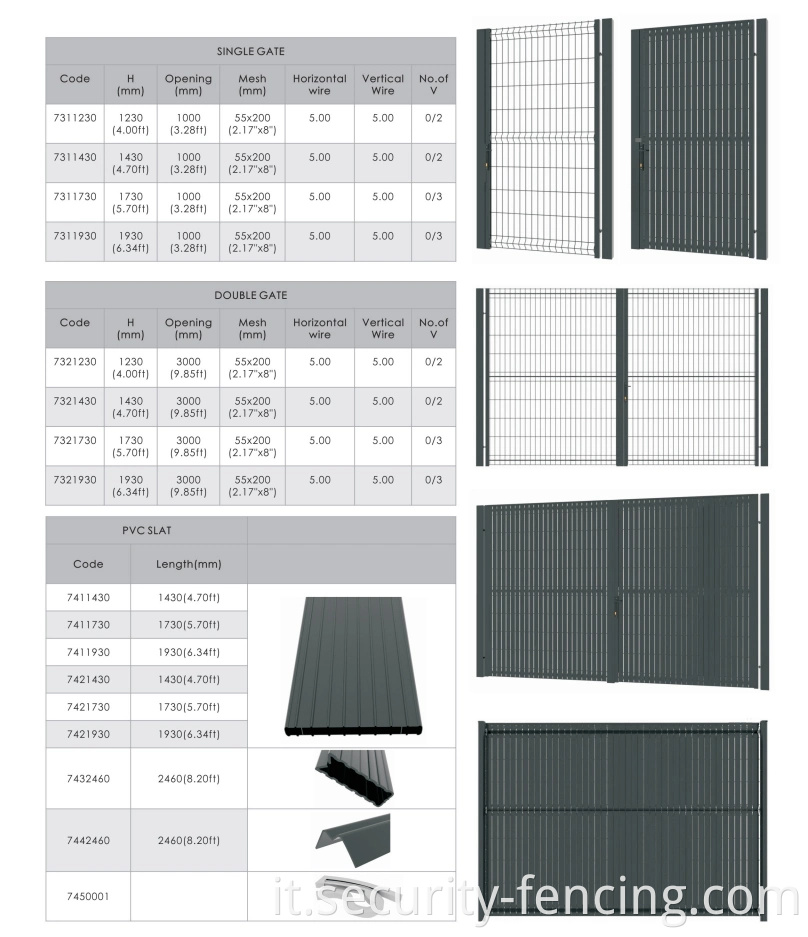

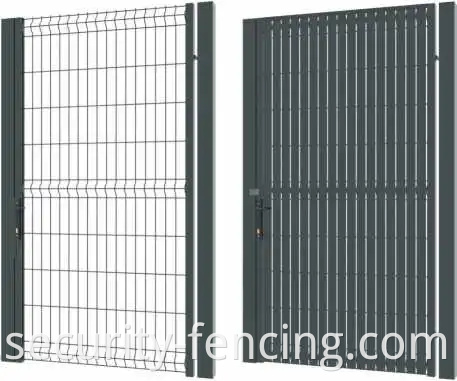

| Code | H (mm) | SINGLE GATE | Vertical Wire | No.of V | ||
| Opening (mm) | Mesh (mm) | Horizontal wire | ||||
| 7311230 | 1230(4.00ft) | 1000(3.28ft) |
55x200 (2.17"x811) |
5.00 | 5.00 | 0/2 |
| 7311430 | 1430(4.70ft) | 1000(3.28ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7311730 | 1730(5.70ft) | 1000(3.28ft) |
55x200 (2.17"x811) |
5.00 | 5.00 | 0/3 |
| 7311930 | 1930(6.34ft) | 1000(3.28ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
| DOUBLE GATE | ||||||
| Code |
H (mm) |
Opening (mm) | Mesh (mm) | Horizontal wire | Vertical Wire | No.of V |
| 7321230 |
1230 (4.00ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7321430 |
1430 (4.70ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7321730 |
1730 (5.70ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
| 7321930 |
1930 (6.34ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
